Cardiac Blood Flow Chart In this article we ll walk through the 12 steps of blood flow through the heart detailing each stage to give you a clear and easy to understand picture of this process 1 Blood Enters the Right Atrium The journey of blood flow through the heart begins as deoxygenated blood rich in carbon dioxide enters the right atrium This blood
This video provides a simple step by step diagram of the cardiac blood flow and a chart of the circulation pathway Includes the anatomy of the heart and an animation quiz at the end in order to test your knowledge Understanding how blood flows through the heart is essential in comprehending the functions of this remarkable organ The diagram illustrating the blood flow through the heart shows the various chambers and valves that ensure efficient circulation The heart consists of four chambers two atria left and right and two ventricles left and
Cardiac Blood Flow Chart
Cardiac Blood Flow Chart
https://biologydictionary.net/wp-content/uploads/2017/02/Cardiac-Cycle-Diagram.jpg
Arterial Blood Flow Chart
https://o.quizlet.com/Er1dD7LjwjZnOzBcH4aPgQ_b.jpg
Arterial Blood Flow Chart
https://c8.alamy.com/comp/ADTXT9/normal-blood-flow-ADTXT9.jpg
Mnemonic for the 12 Steps of Blood Flow Through the Heart One mnemonic for blood flow through the heart is Try Pulling My Aorta This can help you remember the order of the valves Try Tricuspid Valve Pulling Pulmonary Valve My Mitral Valve Aorta Aortic Valve Find one that works for you and practice reciting it to help solidify Capillary blood flow enters venules that join to form cardiac veins that drain into the coronary sinus on the posterior side of the heart which drains into the right atrium There are also anterior cardiac veins and T hebesian veins drain directly into the cardiac chambers
From atrial contraction to ventricular relaxation the flow chart helps in mapping out the sequential progression of the cardiac cycle As we see from the cardiac cycle flow chart let s delve into the complete cardiac cycle breaking down the process into detailed steps Blood enters the heart through two large veins the inferior and superior vena cava emptying oxygen poor blood from the body into the right atrium of the heart As the atrium contracts blood flows from your right atrium into your right ventricle through the
More picture related to Cardiac Blood Flow Chart
Arterial Blood Flow Chart
https://www.researchgate.net/publication/321440879/figure/fig1/AS:567102243340288@1512219119479/Flow-chart-ABG-arterial-blood-gas-analysis-DE-diaphragmatic-excursion-E-Ea-the-ratio.png
Diagram Of Heart Blood Flow For Cardiac Nursing Students NCLEX Quiz
https://www.nclexquiz.com/wp-content/uploads/2019/06/Diagram-of-Heart-Blood-Flow-for-Cardiac-Nursing-Students-559x1024.jpg

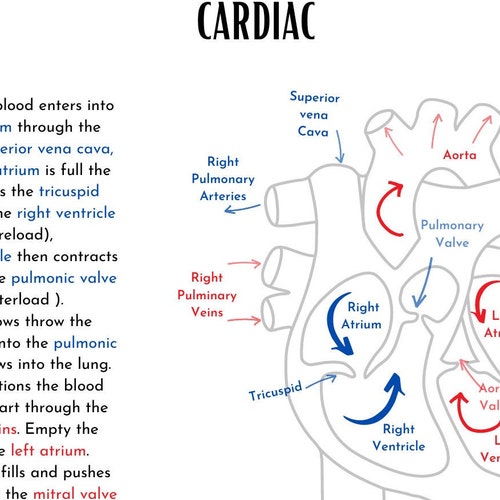

Cardiac Blood Flow Need To Know Terms Etsy
https://i.etsystatic.com/35565935/r/il/a8d8e9/3859004482/il_500x500.3859004482_gc0c.jpg
This step by step diagram provides easy notes and explanations of the cardiac cycle blood flow through the heart in order and the atrial and ventricular anatomy of the heart Learn the conduction system including the SA node AV node and cardiac action potentials Blood flows through the heart in the following order 1 body 2 inferior superior vena cava 3 right atrium 4 tricuspid valve 5 right ventricle 6 pulmonary arteries 7 lungs 8 pulmonary veins 9 left atrium 10 mitral or bicuspid valve 11 left ventricle 12 aortic valve 13 aorta 14 body
The cardiovascular system includes three types of blood circulation pulmonary systemic and coronary The phrase heart circulation is ambiguous The path of blood flow through the heart and lungs is pulmonary circulation while the blood supply to the heart itself is coronary circulation Function and anatomy of the heart made easy using labeled diagrams of cardiac structures and blood flow through the atria ventricles valves aorta pulmonary arteries veins superior inferior vena cava and chambers Includes an exercise review worksheet quiz and model drawing of an anterior vi
Blood Flow Diagram Of Heart
https://www.mikrora.com/wp-content/uploads/2019/04/blood_circulation_flow_chart_5.jpg
Heart Blood Flow Itsulsd
https://www.nclexquiz.com/wp-content/uploads/2019/06/Heart-Anatomy-Cardiovascular-System-Anatomy-Charts.png
https://nexusnursinginstitute.com
In this article we ll walk through the 12 steps of blood flow through the heart detailing each stage to give you a clear and easy to understand picture of this process 1 Blood Enters the Right Atrium The journey of blood flow through the heart begins as deoxygenated blood rich in carbon dioxide enters the right atrium This blood
https://www.ezmedlearning.com › blog › heart-blood-flow-diagram
This video provides a simple step by step diagram of the cardiac blood flow and a chart of the circulation pathway Includes the anatomy of the heart and an animation quiz at the end in order to test your knowledge
Circulatory Flow Chart
Blood Flow Diagram Of Heart
The Heart And Blood Flow Blood And The Cardiovascular System
Cardiovascular System Blood Flow Chart Image To U
Blood Flow Through The Heart Chart Heart Blood Flow Circulation Anatomical Diagram With Atrium
Chart Showing Blood Flow Of Human Heart 418877 Vector Art At Vecteezy
Chart Showing Blood Flow Of Human Heart 418877 Vector Art At Vecteezy
Diagram Of The Human Heart Blood Flow Through The Heart Pathways And Circulation Cardiac
Heart Blood Flow Diagram Quizlet
Flow Chart Of The Cardiac Cycle
Cardiac Blood Flow Chart - Wigger s diagram is used to demonstrate the varying pressures in the atrium ventricle and artery during one cardiac cycle Figure 2 Intracardiac pressures are different within the right and left sides of the heart
